снят с производства
| Connections | 1x SDI input: Inputs 10-bit SD/HD switchable video and 16 ch audio embedded in HD and 8 ch in SD 1x HDMI type A input: Inputs video and 8 ch audio embedded in SD and HD |
| Computer Interface | 1x PCI Express 1 lane, compatible with 4, 8 and 16 lane PCIe slots |
| Codecs Supported | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2 |
| Software Supported | Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Cubase, Autodesk Smoke, Adobe Photoshop, Avid Symphony, Avid News Cutter, Tools On Air just:in, Tools On Air live:cut, Tools On Air just:play, Tools On Air just:live, Softron OnTheAir MovieRecorder, Softron OnTheAir CG, Steinberg Nuendo, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro, Vidcaster Studio, Vidcaster Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Steinberg Nuendo, Flash Media Encoder, Xsplit Broadcaster, Wirecast, Livestream Procaster, Harris Infocaster |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60 |
| SDI Compliance | SMPTE 259M and 292M |
| SDI Metadata Support | VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Configuration | HDMI automatically configures to connected display |
| HDMI Resolution | Pixel for pixel HD resolution input to connected device |
| HDMI Color Precision | 10-bit |
| Multiple Rate Support | SDI and HDMI are switchable between SD and HD |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Colorspace Conversion | Hardware based real time |
| HD Up Conversion | Software based up conversion during video playback |
| Real Time Effects | Apple Final Cut Pro internal effects Adobe Premiere Pro Mercury Playback Engine effects Avid Media Composer 6 internal effects |
| Operating System Requirements | Mac OS X 10.10 Yosemite Mac OS X 10.11 El Capitan or later Windows 7, 8.1, and 10, all 64-bit Linux |
| Operating Temperature | 32 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 113°F (-20 to 45°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Размеры | 3.6" deep (9.2 cm) |

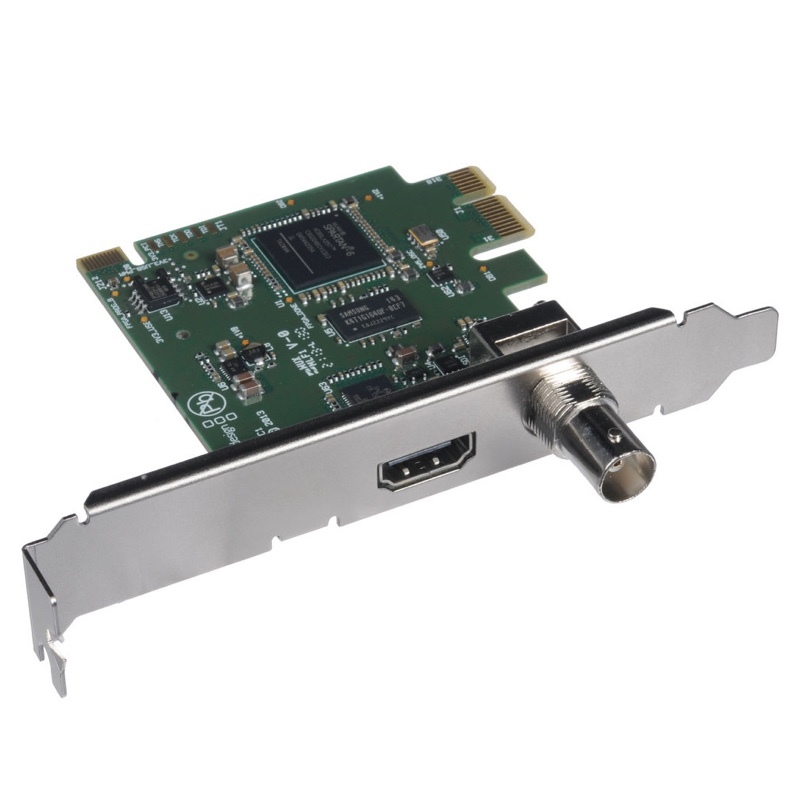

Blackmagic Design DeckLink Mini Recorder
программы на CD содержат:
Media Express, Disk Speed Test, LiveKey and Blackmagic System Preferences and Driver for Mac
Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Driver for Windows 7 or 8
Media Express, Blackmagic Control Panel and Driver for Linux
